In more than a decade of working with custom packaging boxes and POP display stands, I've learned that a project almost never fails because of the logo or the colors—it fails because the dieline was wrong. A packaging dieline is the technical blueprint that tells machines exactly where to cut, fold, crease, and glue your box or display so it works in real life, not just on a screen. [designnbuy]
If your brand is developing retail package boxes, corrugated shippers, or cardboard POP displays, understanding dielines is the fastest way to avoid costly reprints, delays, and rejected shipments. [yohorc]

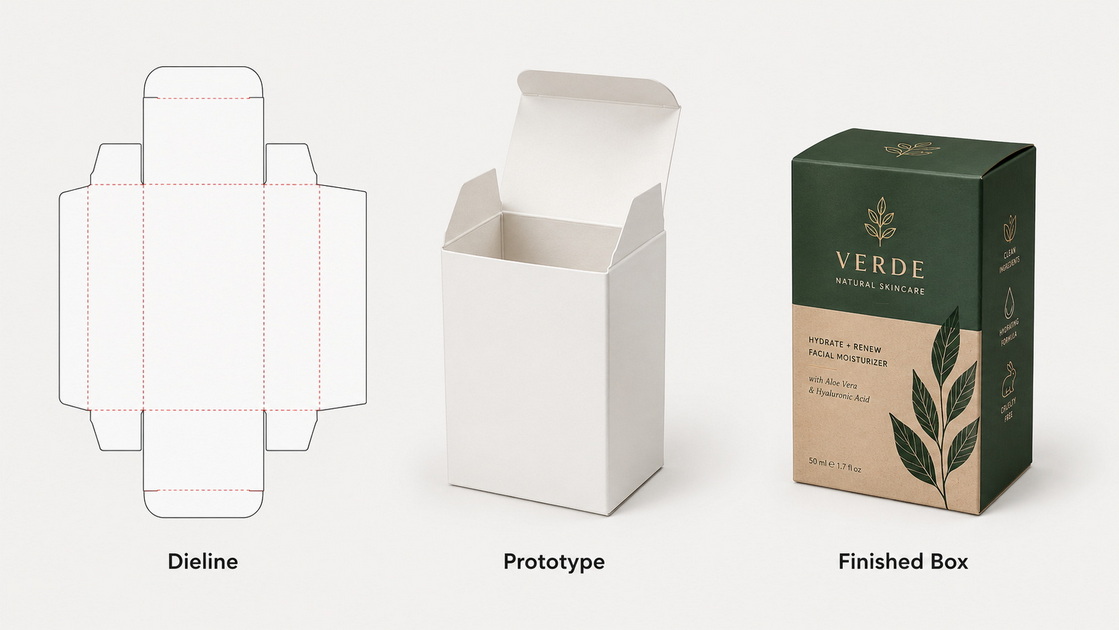

A dieline in packaging is a flat technical drawing that shows the exact shape of your box or display before it is assembled. It looks like an unfolded net of your structure and includes all structural guides: [businessresearchinsights]
- Cut lines – show where the material will be cut.
- Fold/crease lines – show where the board will bend.
- Bleed lines – show how far artwork should extend.
- Safety zones – show where important text and logos must stay.
- Glue or tape tabs – show where adhesive will be applied. [designnbuy]
Designers use the dieline to position artwork; printers and converters use it to set up dies, cutting, and folding; brand owners use it to verify that the final package box or POP display will stand, stack, and present correctly on the shelf. [yohorc]
From a manufacturer's perspective, a good dieline is the first quality checkpoint in any packaging project. [businessresearchinsights]
Dielines are critical because they:
- Prevent structural failures – avoiding boxes that can't close or displays that collapse under product weight. [designnbuy]
- Reduce material waste – by cutting correctly the first time and optimizing sheet layout. [businessresearchinsights]
- Speed up approvals – stakeholders can see all panels and flaps clearly in a flat and 3D preview. [yohorc]
- Keep repeat jobs consistent – approved dielines become reusable standards for future print runs. [businessresearchinsights]
In 2026, with faster, more personalized packaging runs and tight retailer windows, brands cannot afford dieline errors that cause rework and missed launch dates. [meyers]

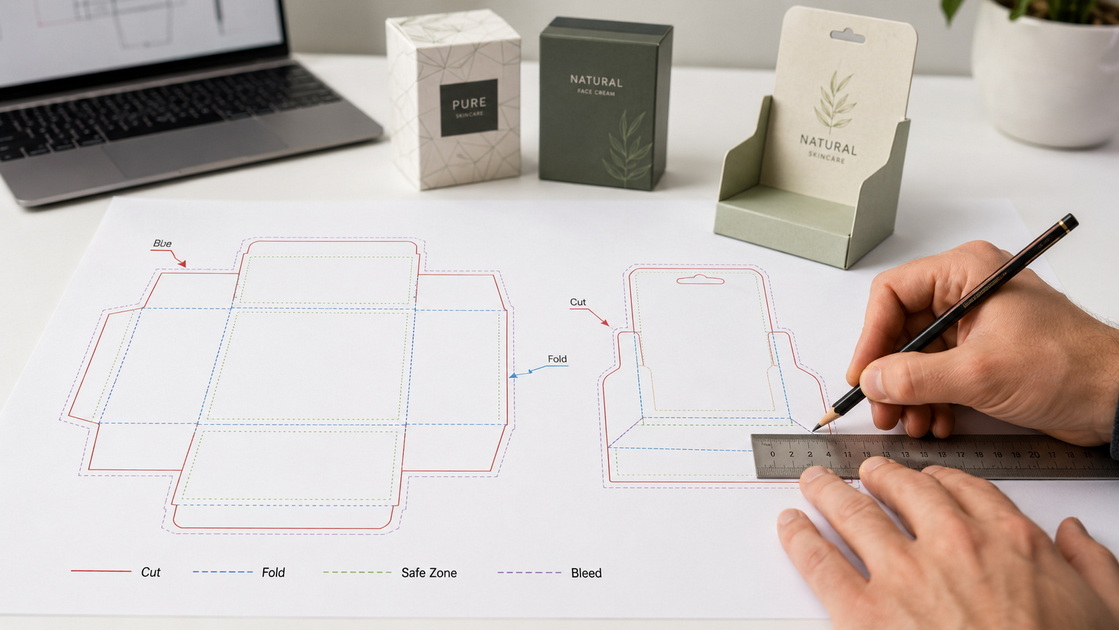

Most professional dielines share a common visual language so designers, engineers, and printers can collaborate efficiently. [packmojo]
- Cut lines (trim lines): Typically solid black lines showing the final outer shape to be cut. [yohorc]
- Fold/crease lines: Often solid red or another distinct color, indicating where the board will be scored and folded into 3D form. [yohorc]
- Bleed lines: Solid lines outside the cut line that define the bleed area, usually about 0.125 inch (3 mm) beyond the trim. [packmojo]
- Safety lines (margins): Dotted lines inside the trim that mark the safe zone for logos and text so nothing is cut off even if the sheet shifts slightly. [businessresearchinsights]
- Perforation lines: Dotted or dashed lines that show tear‑off or easy‑open features. [yohorc]
- Glue tabs: Marked areas where hot‑melt glue or double‑sided tape will be applied during assembly. [businessresearchinsights]
These conventions help everyone read the dieline quickly, regardless of the specific software or supplier. [packmojo]
Different structures require different dieline strategies. [designnbuy]
These include:
- Folding carton boxes for retail products
- Rigid gift boxes for premium items
- Corrugated shipper boxes for e‑commerce and bulk delivery [businessresearchinsights]
Here, accuracy in panel dimensions, locking mechanisms, and glue tabs determines how well the box assembles and protects the product. [designnbuy]
Label and sticker dielines define the exact cut path of each label, whether supplied on sheets or rolls. They must account for: [businessresearchinsights]
- Gap between labels
- Radius of corners
- Alignment with bottles, jars, or folding cartons [designnbuy]
Even small errors can cause peeling, misalignment on applicators, and high scrap rates. [designnbuy]
For pouches, sachets, and wraps, the dieline must include:
- Seal areas
- Tear notches
- Gussets and folds
- Volume allowances for product expansion [designnbuy]
These structures are less forgiving, so tight tolerances on the dieline are critical for shelf appeal and machine run‑ability. [designnbuy]

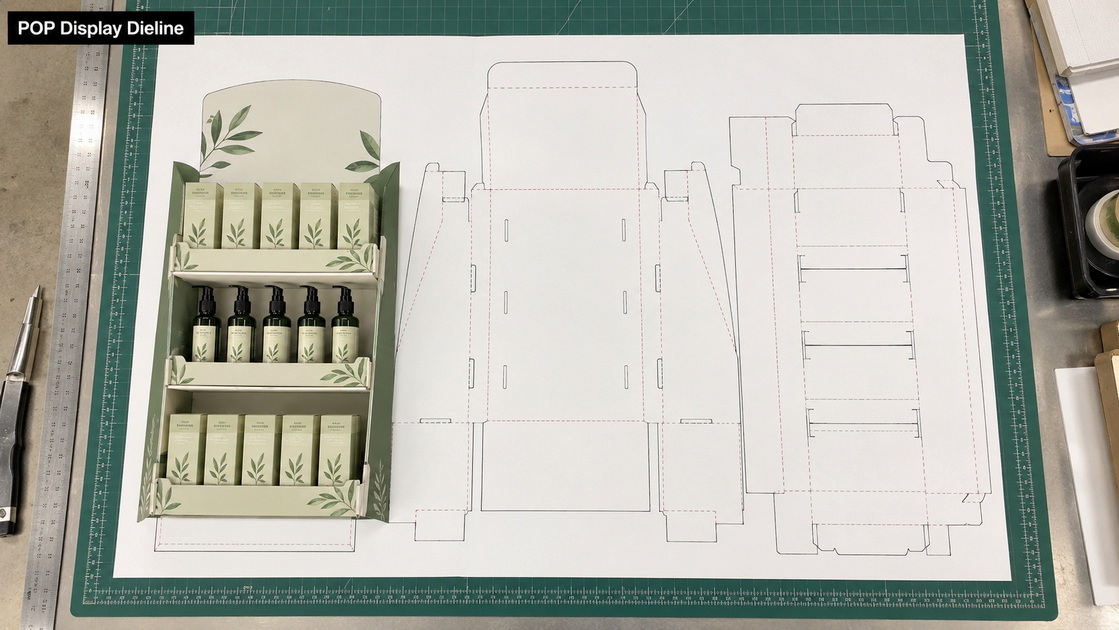

For POP displays and retail‑ready trays, dielines must consider:
- Weight distribution and load‑bearing panels
- Assembly steps on the shop floor
- Retailer size constraints and palletization
- Visibility of brand messages at shopper eye level [longwindisplay]
As a display manufacturer, we always test dielines with full product weight before releasing them for mass production, to ensure stability in real stores. [longwindisplay]
Structural engineers typically create dielines using specialized packaging CAD software such as ArtiosCAD or similar tools. These systems: [yohorc]
- Calculate panel dimensions based on board thickness and product weight.
- Simulate folds and stress points.
- Generate production‑ready cut and crease paths. [yohorc]
For standard mailers, tuck boxes, or POP displays, manufacturers often start from proven template libraries and adapt dimensions. [packmojo]
Once the structural dieline is approved, designers import it into Adobe Illustrator or equivalent vector software. [packmojo]
Best practices include:
- Keeping artwork and dieline on separate layers (Artwork vs Dieline). [packmojo]
- Working in CMYK color mode with embedded images at 300 dpi. [packmojo]
- Outlining fonts and using vector assets for logos and linework. [packmojo]
The designer extends backgrounds to the bleed line and keeps important content within the safe zones. [packmojo]
Modern workflows import dielines into 3D packaging software or online tools to create virtual mock‑ups. [yohorc]
This allows teams to:
- Rotate the assembled box or display.
- Check panel alignment and artwork flow across edges.
- Validate opening, closing, and product loading without cutting physical samples. [businessresearchinsights]
For high‑volume or high‑risk projects, we still recommend a physical prototype before committing to tooling, especially with complex POP displays or heavy products. [longwindisplay]
To help our packaging clients avoid common mistakes, we share a simple dieline checklist before they send us final files. [packmojo]
1. Confirm structure and dimensions.
Match dieline size to the actual product, including inner fit and outer constraints (shelf, pallet, or display). [designnbuy]
2. Use the correct color mode and layers.
CMYK only, with dieline lines on a non‑printing layer and artwork on a separate layer. [packmojo]
3. Set proper bleed and safe zones.
At least 0.125 inch (3 mm) bleed, with critical text and logos 0.125 inch inside the trim line. [yohorc]
4. Embed images and outline fonts.
Avoid missing image links or font substitutions at the printer. [packmojo]
5. Check orientation and reading direction.
Ensure all panels read correctly when folded—no upside‑down logos or barcodes. [businessresearchinsights]
6. Review glue areas and perforations.
Confirm adhesive zones are free of critical artwork and that tear lines work as intended. [designnbuy]
7. Run a 3D preview or sample.
Use virtual 3D tools or a white dummy to validate fit, stability, and assembly steps. [yohorc]
A "small" dieline mistake can quickly become a large cost in B2B packaging projects. [meyers]
Typical consequences include:
- Reprinting and re‑cutting entire runs due to misaligned artwork or incorrect dimensions. [businessresearchinsights]
- Assembly bottlenecks, when displays take too long for retail staff to set up.
- Product damage or returns if boxes do not protect items properly.
- Retailer chargebacks for packaging that does not meet size, labeling, or safety standards. [creativeretailpackaging]
This is why more brands now treat approved dielines as controlled assets, with version management and standardized templates across product lines. [creativeretailpackaging]
Current packaging design trends in 2026 are reshaping how teams think about dielines. [zenpack]
- Sustainability by design: Dielines are optimized to reduce material, create mono‑material structures, and improve recyclability without compromising strength. [theboxology]
- Eco‑luxury structures: High‑end brands combine raw, uncoated boards with clever structural features to feel premium and eco‑friendly. [meyers]
- Retail and e‑commerce dual use: One dieline must perform both in physical stores and in shipping, with protective inserts and easy‑open features. [creativeretailpackaging]
- Smart and interactive packaging: Dielines increasingly reserve space for QR codes, NFC tags, and AR triggers that turn boxes into marketing touchpoints. [vistaprint]
For POP displays, this also means more modular, flat‑packed structures that reduce shipping volume but still assemble into attention‑grabbing in‑store units. [creativeretailpackaging]
As a Chinese POP display and package box manufacturer, we rely on dielines to bridge creative ideas with reliable production. [longwindisplay]
In our daily work, we use dielines to:
- Validate load‑bearing capacity and product layout for each display tier.
- Design pre‑assembled or pre‑packed displays that arrive ready for retail staff to open and place.
- Standardize outer carton sizes for container and pallet optimization.
- Coordinate print and structural changes across global campaigns with different SKUs. [meyers]
When clients share only artwork without a proper dieline, our structural team usually proposes a production‑ready dieline first, then feeds it back to the brand's design team for artwork adaptation. This reduces risk and protects timelines on large roll‑outs. [longwindisplay]
If you're planning a new custom packaging box or POP display, you do not have to solve the dieline alone. Our structural engineers can:
- Design a custom dieline tailored to your product, shelf space, and budget.
- Optimize existing dielines for material savings and stability.
- Provide 3D mock‑ups and prototypes before you commit to full production. [longwindisplay]
Share your existing artwork, product dimensions, and retail requirements, and we will build a ready‑for‑production dieline and sample you can use with confidence.
1: Who is responsible for creating the packaging dieline—designer, printer, or manufacturer?
In professional workflows, structural packaging engineers or printers typically create the dieline, while graphic designers place artwork on top of it. Manufacturers like us then validate it for production before mass printing and die‑cutting. [longwindisplay]
2: Can I design my own dieline in Adobe Illustrator?
You can sketch simple structures in Illustrator, but it is not recommended to use it for final structural dielines because it does not account for material thickness or machine constraints. It is better to let a packaging CAD tool or manufacturer supply the dieline and use Illustrator only for artwork. [designnbuy]
3: How do dielines help reduce packaging and POP display errors?
Dielines clearly define cut, fold, glue, and safe areas, so teams can catch structural and artwork issues early in 2D and 3D preview stages. This prevents miscuts, collapsed displays, and misaligned prints in finished production. [yohorc]
4: Can the same dieline be reused for multiple products?
Yes. Once approved, a dieline can be reused for similar products with the same structure, which saves time and keeps packaging consistent. Many brands standardize dielines for product families and only change artwork. [meyers]
5: What file format is best when sending dielines and artwork to a manufacturer?
The most reliable formats are editable vector AI or layered PDF files in CMYK, with embedded images and outlined fonts. These preserve scale, color accuracy, and allow last‑minute technical adjustments without quality loss. [businessresearchinsights]
