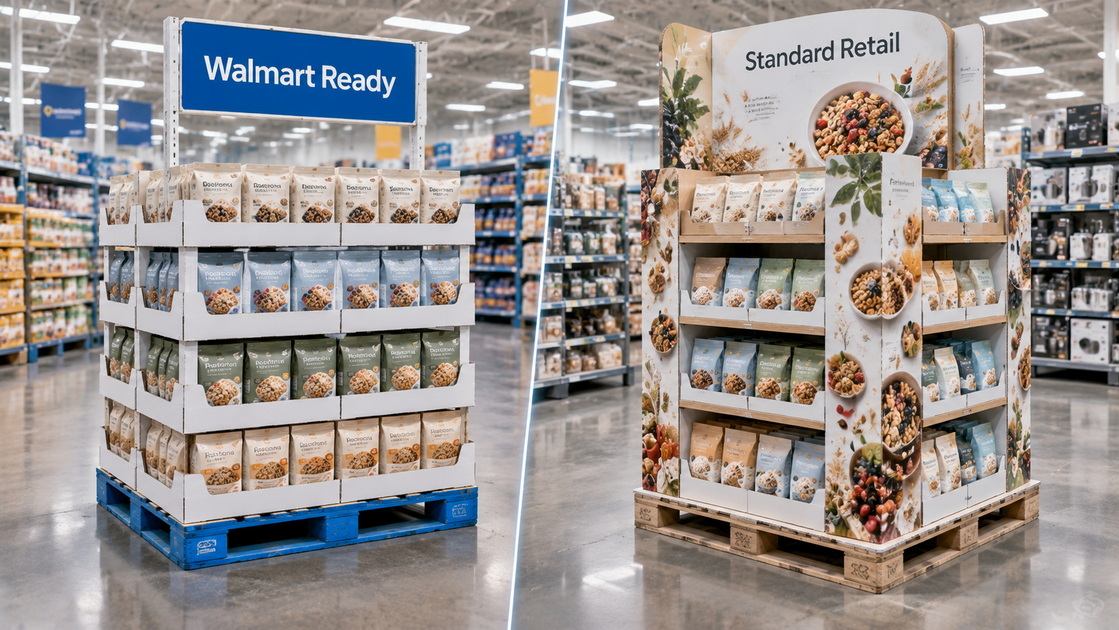

● Walmart Pallet Display vs Standard Pallet Display
● What Is a Walmart Pallet Display?
● What Is a Standard Pallet Display?
● The Most Important Structural Differences
>> Pallet Footprint and Store Fit
>> Display Height and Sightlines
● Walmart PDQ Display Requirements That Affect Design
>> Goal Post Price Sign Integration
>> Corrugated Strength and Material Planning
>> No Stapling, Gluing, or Taping to the Pallet
>> Product Weight and Tray Limits
● Standard Pallet Displays: Where They Offer More Freedom
>> Different Pallet and Shipping Models
● How to Choose the Right Format for Your Retail Program
>> The Hybrid Strategy for Multi-Chain Brands
● Expert Checklist Before You Approve Production
● How Long Win Display Supports Retail Pallet Display Programs
>> 1. What is the difference between a Walmart PDQ display and a standard pallet display?
>> 2. What pallet sizes are commonly accepted for Walmart pallet displays?
>> 3. Does a Walmart pallet display need ISTA testing?
>> 4. Can a corrugated display be glued or stapled to a Walmart pallet?
>> 5. Can a standard pallet display be adapted for Walmart?
Choosing between a Walmart pallet display and a standard pallet display is not simply a decision about display size, artwork, or unit cost. For brands entering large retail chains, the display must balance shopper visibility, retail compliance, distribution-center handling, store-labor requirements, product protection, sustainability, and program economics.
A standard pallet display can be highly effective for multi-retailer rollouts because it offers greater flexibility in dimensions, branding, materials, and merchandising. A Walmart pallet display, often developed as a PDQ display or retail-ready pallet display, must be engineered around Walmart-specific packaging, palletization, store-execution, and approval expectations. Walmart's supplier guidance specifically asks suppliers to confirm their ability to modify case packaging, apply required markings, palletize shipments, and load trailers according to Walmart standards.
For Long Win Display, a China-based POP display designer and manufacturer, the right approach is to design the pallet display as a complete retail deployment system—not merely as a printed fixture. That means considering product loading, pallet footprint, transit performance, store setup, shopper access, replenishment, and end-of-life handling from the first structural drawing.
| Comparison Factor | Walmart Pallet Display | Standard Pallet Display |
|---|---|---|
| Primary purpose | Comply with Walmart retail-ready display and logistics requirements | Support one retailer, multiple retailers, distributors, or promotional programs |
| Design flexibility | More restricted; must align with retailer specifications and approval | More flexible in footprint, height, materials, shoppability, and graphics |
| Common footprint | Full pallet 40 in × 48 in or half pallet 20 in × 48 in | Often 40 in × 48 in, 48 in × 40 in, Euro pallet, half pallet, quarter pallet, or custom size |
| Typical display height | Commonly 43 in display height, excluding pallet and header details; shipping height is controlled | Varies according to retailer, store planogram, aisle clearance, and logistics requirements |
| Pricing communication | Requires a location/method for Walmart Goal Post Price Sign | May use integrated price cards, shelf strips, headers, price panels, or retailer-approved signage |
| Product access | Built around Walmart’s specific merchandising and safety expectations | Can support one-sided, two-sided, three-sided, or 360-degree shopping |
| Material strategy | Corrugated-heavy retail-ready approach is common; pallet and material rules apply | Corrugated, metal, wood, plastic, wire, MDF, or hybrid structures may be possible |
| Testing expectations | ISTA testing may be required or recommended based on display and product conditions | Testing standard depends on retailer, distribution model, product mass, and freight route |
| Store labor | Must minimize assembly and simplify placement | Can be flat-packed, partially assembled, or fully pre-packed depending on the program |
| Best use case | Walmart-specific promotional, seasonal, or retail-ready programs | Cross-retailer campaigns, club stores, specialty retail, and flexible POP programs |
Walmart-oriented PDQ and pallet-display guidance commonly identifies half-pallet displays at 20 in × 48 in and full-pallet displays at 40 in × 48 in, with a 43 in maximum display height excluding the pallet and certain sign/header elements. It also notes that quarter-pallet displays are no longer accepted in Walmart stores.
A Walmart pallet display is a retail-ready floor display designed to arrive at the Walmart distribution center and store in a format that reduces store labor and supports consistent merchandising. It is often called a PDQ pallet display, where PDQ generally refers to "pretty darn quick" or "pretty darn quick display," reflecting the retail need for fast placement and minimal assembly.
The display is normally pre-packed with products at the factory. After shipment, store associates remove outer protective packaging, place the display in the assigned retail location, insert or position the required price-sign system, and make the products available for shoppers.
A Walmart pallet display must therefore achieve several jobs at once:
- Protect products through factory loading, transportation, DC handling, and in-store movement
- Fit approved pallet dimensions and height limits
- Present products clearly at shopper level
- Minimize store assembly and setup time
- Support approved Walmart price communication
- Avoid structural features that conflict with Walmart handling expectations
- Use materials and an end-of-life plan suitable for the retailer's operations
- Maintain a neat, shoppable appearance throughout the promotion
This is why a Walmart PDQ display should be designed with input from the brand, display manufacturer, packaging team, logistics team, retailer contact, and sometimes an ISTA-certified testing laboratory.
A standard pallet display is a product-loaded floor display built on a pallet or pallet-compatible base, but it is not automatically governed by Walmart's exact display rules.
It may be created for:
- Grocery chains
- Drugstores
- Home-improvement retailers
- Warehouse clubs
- Specialty retailers
- Convenience-store groups
- Distributor programs
- Trade shows
- Temporary retail activations
- International retail channels
A standard pallet display can use a variety of footprints and designs. Some programs use a full 48 in × 40 in pallet. Others use a 40 in × 48 in footprint, a 600 mm × 800 mm half-Euro pallet, a 1,200 mm × 800 mm Euro pallet, or a custom base that fits a retailer's merchandising fixtures.
The key difference is that standard pallet displays are retailer- and project-dependent. The design may be optimized for branding, 360-degree access, product capacity, reuse, modularity, or low landed cost without the same Walmart-specific restrictions.
For example, a standard pallet display for a club store may prioritize bulk volume and multi-sided shopping. A standard pallet display for a beauty retailer may prioritize premium graphics, small SKU organization, and a more compact footprint. A display for a home-improvement chain may need heavy-duty load capacity and durable materials for oversized products.
For Walmart programs, the display footprint is not merely a logistics decision. It affects aisle placement, Action Alley presentation, store safety, replenishment, and retailer approval.
Public Walmart-oriented guidance identifies these common pallet display sizes:
| Walmart Display Type | Common Footprint | Display Height Guidance |
|---|---|---|
| Half Pallet Display | 20 in × 48 in | Up to 43 in, excluding pallet and permitted header/sign elements |
| Full Pallet Display | 40 in × 48 in | Up to 43 in, excluding pallet and permitted header/sign elements |
| Full Pallet Dump Bin | 20 in × 48 in or 40 in × 48 in | Subject to specific opening and height conditions |
| Stacking Trays on Pallet | Must fill pallet without overhang and with limited underhang | Overall height must remain within requirements |
Walmart-oriented display guidance states that pallet displays should not overhang the pallet, stacking trays should have no more than 1 in underhang, and maximum shipping height is typically controlled at 48 in including the 5 in pallet.
By contrast, a standard pallet display may be designed around:
- A retailer's standard pallet dimensions
- A container-loading plan
- The amount of product per display
- A merchandising bay or endcap size
- Local store layout
- Desired shopping access from one, two, three, or four sides
Expert recommendation: Do not finalize graphics before confirming the physical store footprint. A beautiful display that blocks an aisle, exceeds a height limit, or does not fit its assigned retail zone can be rejected or reworked late in the program.
For Walmart, consistent display height supports cleaner store sightlines and easier promotional-zone management. Guidance indicates a maximum 8 in pallet-display header and specific spacing considerations when a Goal Post Price Sign is used.
A standard pallet display can be taller or shorter if the retailer allows it. However, height should still be evaluated against:
- Store ceiling and signage
- Fire and safety requirements
- Visibility across aisles
- Product reach range
- Replenishment method
- Shipping cube
- Tipping risk
A taller display can create stronger visual impact, but it can also raise the center of gravity and increase freight damage risk. The best display height is usually the one that maximizes shopper access and product visibility without creating transport or in-store handling problems.
Walmart-specific display requirements can shape how shoppers interact with a pallet display. For example, guidance for Walmart PDQ displays notes that the back side of the facing side should not be shoppable in some half-pallet applications, allowing displays to back up to each other in designated retail areas.
A standard pallet display can be designed for:
- One-sided shopping
- Two-sided shopping
- Three-sided shopping
- 360-degree shopping
- Open dump-bin access
- Shelf-tray access
- Peg-hook access
- Mixed shelf and bulk-product access
The correct approach depends on product category. Large bottled products may work well in structured corrugated trays. Apparel accessories may need hooks. Small seasonal items may benefit from a dump-bin format. Premium personal-care products may require shelf dividers, tester modules, or a locked display section.
A Walmart pallet display requires early planning because several details can affect both approval and manufacturing.
Walmart-oriented pallet-display guidance states that pallet displays must use a Goal Post Price Sign to show the Walmart price point. The display needs an effective, built-in method for holding the sign, and the display should clearly indicate where the sign is inserted.
This matters because price signage must be planned into the structure. It should not be treated as an afterthought.
A Long Win Display engineering team would normally consider:
- Sign-holder position
- Pole diameter compatibility
- Sign visibility from the main shopper approach
- Clearance between header and sign
- Stability during shipment
- Ease of installation by store associates
- Protection against the sign blocking products or branding

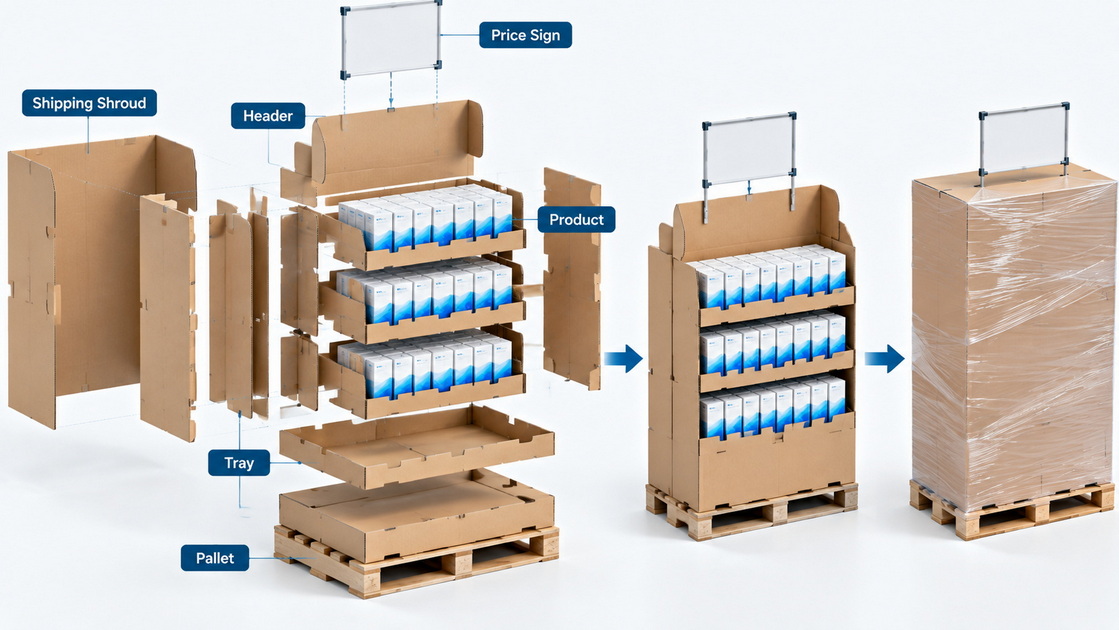

Pallet displays often use corrugated board because it is lightweight, printable, recyclable, and cost-effective for short-term promotions. But corrugated is not a generic material. Board grade, flute structure, moisture exposure, print coverage, die-cut design, adhesive performance, and load distribution all affect real-world performance.
Walmart supply-chain packaging guidance identifies a minimum 200# Mullen board grade for palletized displays. This should not be interpreted as the only engineering input. Product weight, stacking, humidity, freight route, and structural geometry may require stronger specifications.
For a professional program, define:
- Board grade and flute type
- Recycled-content and recyclability expectations
- Compression strength
- Moisture sensitivity
- Load-bearing pads and internal supports
- Tray locking method
- Shelf edge strength
- Wrap and outer-shroud protection
- Pallet interface details
- End-of-life handling plan
This is a frequently missed point. Walmart supply-chain guidance states that stapling, gluing, or taping PDQ displays or case layers to the pallet is not allowed. Walmart-oriented PDQ guidance similarly notes that displays should not be stapled or glued to pallets.
This changes the structural design. The display must remain stable through an approved mechanical method, such as a properly engineered base, corner locks, containment features, stretch wrap, banding where permitted, or other retailer-approved shipping restraint—without relying on prohibited attachment methods.
Common sourcing mistake: A supplier may show a prototype that looks stable on a factory floor but cannot survive vibration, tilt, double-stacking, or store movement once pallet attachments are removed. Always validate the actual shipping configuration.
Retail-ready displays must be easy for store teams to handle. Public guidance states that PDQ display trays should not exceed 50 lbs and shelf-ready packaging should not exceed 22 lbs.
This means product quantity per tray should be calculated not only by cubic capacity, but also by the weight that a store associate can safely manage.

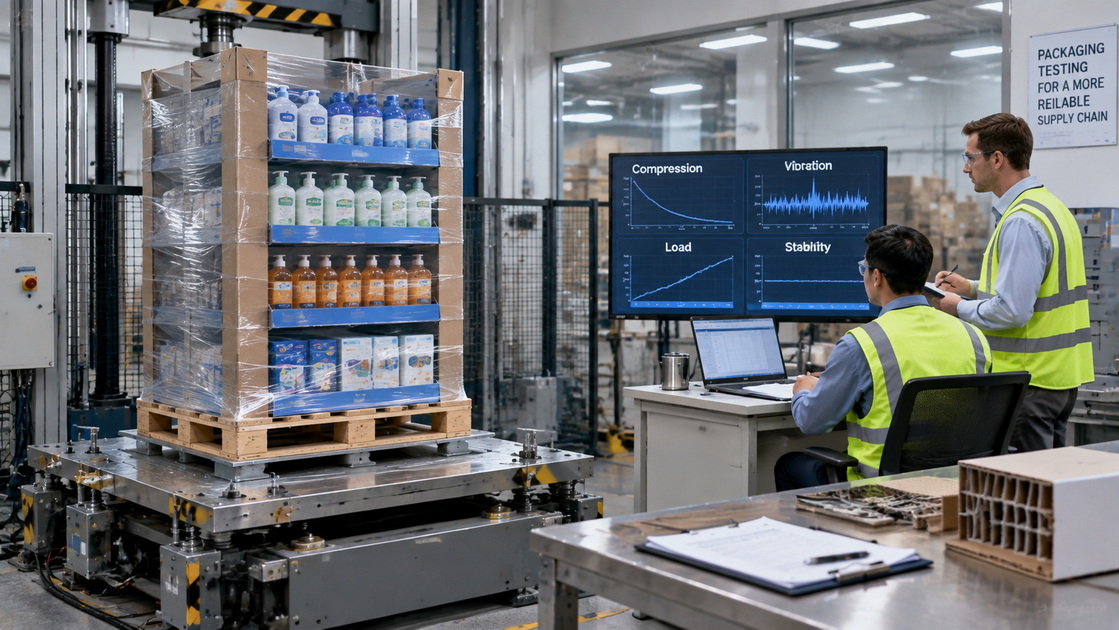

ISTA testing is a critical part of pallet-display risk management. Walmart-oriented guidance says ISTA testing is recommended to help ensure that displays containing 500 lbs or more of product can withstand the process from pack-out to in-store setup. It also describes the need for displays to ride 1,200 miles double-stacked and support load exposure during the distribution process.
A display may need testing even below that weight when it contains fragile products, tall structures, glass, liquid, aerosol products, heavy uneven loads, or complex trays.
Standard pallet displays are valuable when a brand wants one display platform for multiple retail chains, countries, or channels. They allow more design freedom, but that freedom should be managed carefully.
A standard display may use:
- Corrugated board
- Metal tubing
- Wire grid
- Wood
- Plywood or MDF
- Plastic injection-molded parts
- Acrylic
- Recycled composite materials
- Hybrid combinations
For long-term retail programs, a metal or wood display may justify its higher cost through durability and reuse. For a seasonal promotion, corrugated is usually more economical and easier to recycle.
A non-Walmart pallet display may include:
- Larger headers
- Integrated price panels
- More dramatic structural forms
- Interactive elements
- Digital screens, if retailer-approved
- Sample dispensers
- Product testers
- Modular add-on components
- Cross-merchandising attachments
However, more features increase cost, assembly time, damage risk, and retailer-approval complexity. The strongest display is often not the most complicated—it is the display that helps shoppers quickly understand the product and encourages easy pickup.
Standard pallet displays can be developed for:
- Full-pallet shipment
- Half-pallet shipment
- Nested display components
- Flat-packed units
- Pre-assembled units
- Retailer distribution-center delivery
- Direct-to-store delivery
- Mixed-SKU assortment displays
For global programs, Long Win Display can help brands design around container utilization, pallet standards, retail setup requirements, and final-store merchandising conditions.
A Walmart pallet display can cost more to engineer initially because of retailer-specific requirements, approval rounds, controlled dimensions, structural constraints, compliance documents, and testing. However, that higher initial investment may reduce cost later by decreasing damage, chargebacks, store labor, and rework.
| Cost Factor | Walmart Pallet Display | Standard Pallet Display |
|---|---|---|
| Initial engineering | Often higher due to retailer-specific parameters | Can be lower for existing modular designs |
| Structural testing | More likely to require defined transit validation | Depends on retailer and product risk |
| Material use | Optimized around retailer and distribution requirements | Can be optimized for cost, aesthetics, or durability |
| Store setup labor | Designed to be minimal | Varies from flat-pack assembly to retail-ready placement |
| Retailer approval | Usually formal and specific | Varies widely by chain |
| Program flexibility | Lower after approval | Higher for multi-chain or multi-market use |
| Cost of failure | Potential chargebacks, delays, rejected shipments | Potential damage, poor merchandising, or retailer rejection |
Procurement insight: Compare the total cost of ownership, not just the display factory quotation. Include freight cube, product damage, packaging waste, store labor, retailer chargebacks, setup errors, and disposal costs.
Use a Walmart-specific pallet display when:
- Your product will be sold through Walmart stores.
- Your retail buyer or packaging team has defined PDQ or RRP expectations.
- You need a display that moves from factory to DC to store with minimal handling.
- You require Walmart-compatible sign integration.
- Your promotional program must fit approved full- or half-pallet dimensions.
- You want to reduce compliance risk before launch.
Use a standard pallet display when:
- You sell through multiple retail chains with different requirements.
- You need 360-degree merchandising or a custom footprint.
- Your product needs premium permanent materials.
- You are developing a club-store, specialty-retail, or international program.
- You need a reusable, modular, or long-duration display.
- You want a design that can be adapted across retailers.
Many brands do not need to choose only one format forever. A more effective approach is to create a modular display platform:
1. Design a common product tray, shelf, or internal structural system.
2. Create a Walmart-compliant outer display format for Walmart programs.
3. Create alternative headers, price panels, bases, or side panels for other retail chains.
4. Keep core product-loading logic consistent to improve factory efficiency.
5. Produce retailer-specific artwork while preserving common components where possible.
This strategy can lower tooling cost, simplify product packing, improve brand consistency, and make future retail expansion easier.
Before issuing a purchase order for a Walmart or standard pallet display, confirm the following:
1. Retailer specifications are current. Do not rely on an old PDF, a previous display program, or a supplier's memory.
2. Pallet footprint, height, and weight have been approved.
3. The product load plan shows every SKU, tray count, and replenishment method.
4. The display remains shoppable as product quantity declines.
5. The price-sign location and retailer-specific sign holder are engineered into the structure.
6. Corrugated grade, flute, print finish, and structural supports are documented.
7. The display does not depend on prohibited pallet attachments.
8. Transit testing reflects the true shipping configuration.
9. The outer protective packaging can be removed quickly and safely at store level.
10. The display has a clear recycling or disposal plan.
11. A pre-production sample and loaded shipping sample are approved before mass production.
12. Final inspection includes dimensions, print color, load stability, barcode visibility, and pack-out accuracy.

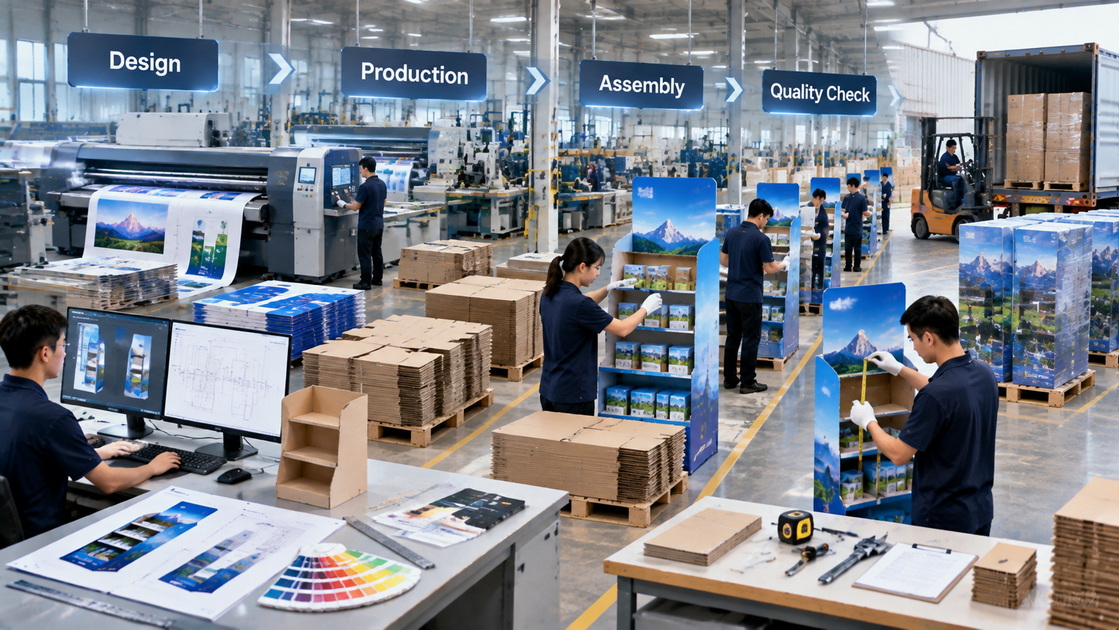

Long Win Display designs, customizes, manufactures, and pre-assembles Pallet Display Stands and POP display solutions for brands entering large retail channels. The company's role is not limited to producing a finished display. A well-managed program starts with understanding the retail environment, the product, the supply chain, and the shopper journey.
For Walmart-specific and large-chain retail projects, a structured development process can include:
- Retailer requirement review
- Display concept development
- Structural design and 3D rendering
- Material and cost optimization
- Product-loading engineering
- Prototype development
- Packaging and transit-protection design
- Pre-assembly and product pack-out
- Quality inspection
- Export packaging and logistics coordination
A Walmart PDQ display is a retailer-specific, retail-ready display designed around Walmart's packaging, palletization, store-setup, signage, and supply-chain expectations. A standard pallet display is more flexible and can be designed for different retailers, pallet sizes, materials, shopping directions, and promotional objectives.
Public Walmart-oriented display guidance commonly lists half-pallet displays at 20 in × 48 in and full-pallet displays at 40 in × 48 in. It also states that quarter-pallet displays are no longer accepted in Walmart stores. Always confirm current requirements with the Walmart buyer, Retail Link resources, or the relevant Walmart packaging team before production.
ISTA testing may be required or recommended depending on the display weight, product category, freight conditions, and Walmart program requirements. Public guidance specifically recommends testing for displays carrying 500 lbs or more and describes the need to survive distribution and double-stacking conditions. Test requirements should be confirmed before tooling and production.
Public Walmart supply-chain guidance states that stapling, gluing, or taping PDQ displays or case layers to the pallet is not allowed. The display must use an approved structural and shipping-restraint solution instead.
Sometimes, but it should not be assumed. The original display must be reviewed against Walmart footprint, height, sign integration, materials, product access, pallet interface, transit-testing, and store-execution requirements. In many cases, adapting a standard design early is easier and less expensive than modifying a finished design after retailer review.
1. Walmart Corporate. "[Supplier Requirements]." Walmart supplier requirements covering packaging modifications, case markings, labeling, palletization, and trailer-loading expectations. [corporate.walmart]
2. TPH Global. "[Walmart Displays RRP and PDQ Guideline FAQ]." Industry guidance covering Walmart-oriented PDQ display sizes, height limits, Goal Post Price Signs, pallet-display restrictions, tray weights, and testing considerations. [tphinc]
3. Packwins. "[Ultimate Guide to Walmart RRP Retail Ready Packaging Standards and PDQ Displays]." Guidance on corrugated material expectations, retail-ready display setup, sign-holder planning, display recyclability, pallet dimensions, and product-protection considerations. [packwins]
4. RM2. "[Supply Chain Packaging Guide]." Packaging-guide excerpt covering 200# Mullen board requirements, pallet labels, pallet quality, and restrictions on stapling, gluing, and taping PDQ displays or case layers to pallets. [rm2]
5. TPH Global. "[Pallet Displays Best Practices for Positioning Products]." Reference for pre-packed, retail-ready pallet-display positioning and shipping-to-store setup concepts. [tphinc]
6. International Safe Transit Association. "[ISTA Testing for a Half Pallet Display]." Explains pallet-display transit testing as a method to simulate supply-chain handling hazards. [popdisplay]
