As someone who works daily with brand managers and packaging engineers at Long Win Display, I've learned that understanding the die cutting process in packaging is one of the fastest ways to reduce costs, avoid structural problems, and get custom POP displays and package boxes right the first time. When you know how die cutting really works on the factory floor, your designs become easier to produce, more reliable in stores, and more profitable at scale. [gentlever]
Die cutting in packaging uses a custom steel rule die (like a precise cookie cutter) to cut, crease, score or perforate paperboard, corrugated and other substrates into the exact shapes needed for boxes, inserts and POP displays. Once set up, the same die can produce thousands or millions of identical pieces with tight tolerances and consistent quality. [packhelp]
From a POP display manufacturer's viewpoint, good die cutting means:
- Clean, accurate cuts that fold and lock correctly. [gentlever]
- Creases that are strong but do not crack print or laminate. [mitchellincoln]
- Repeatable results across large production runs and reorders. [lpipossibilities]

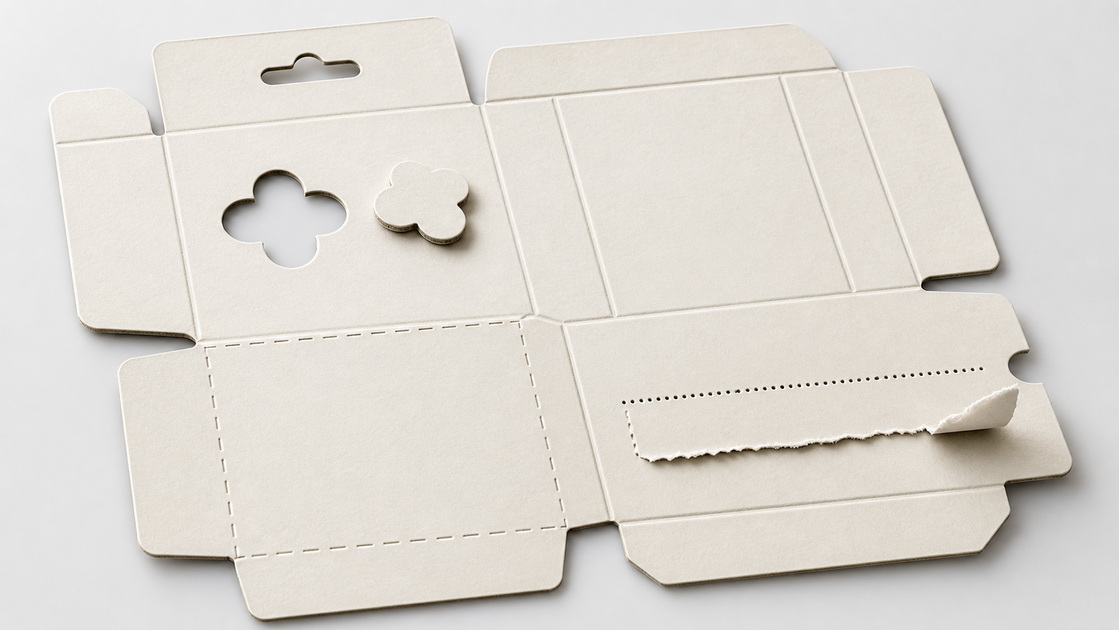

Most custom packaging and POP structures combine four basic die cutting functions. [michaelpackage]
- Through cutting – cuts cleanly through the material to form the outer shape, windows and cut‑outs. [michaelpackage]
- Scoring – makes a shallow indentation or partial cut so the material can fold without breaking. [packhelp]
- Creasing – creates a defined fold line using two parallel stress points for smoother, more controlled inward bends. [mitchellincoln]
- Perforating – forms a series of small cuts or holes to create tear‑off coupons, easy‑open panels or shelf‑ready packaging. [pakfactory]
For retail POP displays and display‑ready boxes, we use perforations for features like tear‑away fronts and header extensions that store staff can easily open on shelf. [yorkcontainer]
Different applications call for different die cutting technologies. [pakingduck]

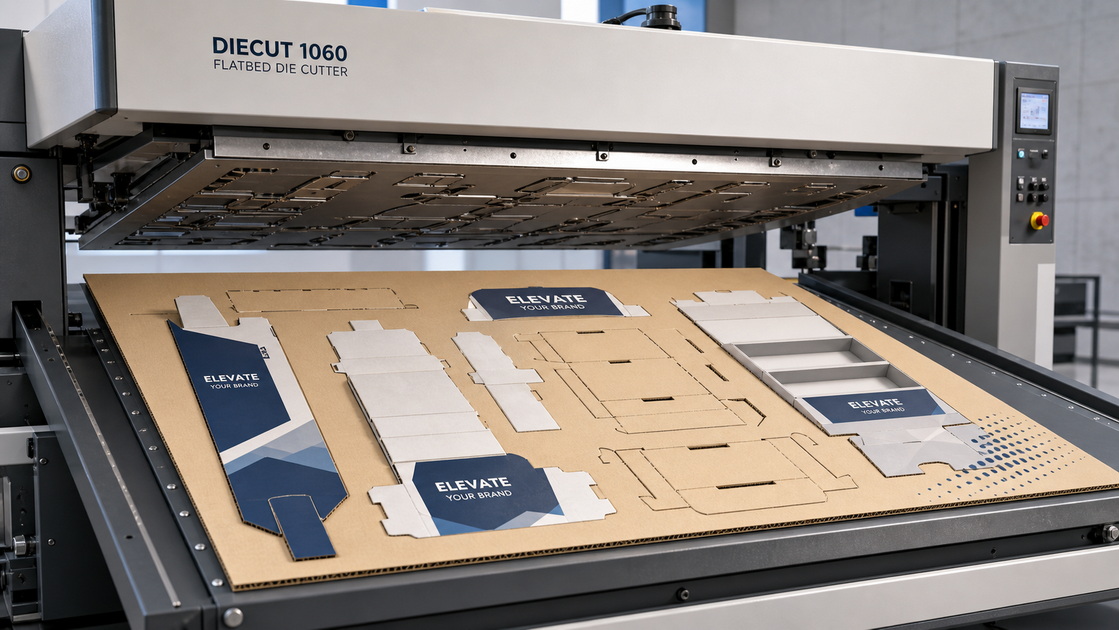

Flatbed die cutting presses a flat die vertically into sheets or corrugated board at relatively low speed and high pressure. [pakingduck]
Best for:
- Thicker substrates like corrugated and chipboard. [gentlever]
- Complex POP structures and custom box designs. [mitchellincoln]
- Medium volume runs where precision and sharp corners matter more than maximum speed. [theboxzilla]
This is the workhorse method for many custom POP displays and heavy‑duty package boxes we produce at Long Win Display. [longwindisplay]
Rotary Die Cutting – High Volume Efficiency
Rotary die cutting uses cylindrical dies and continuous web or sheet feeding for fast, repeatable cuts. [theboxzilla]
Best for:
- High‑volume packaging with more standard shapes. [pakingduck]
- Thinner substrates where speed is a priority. [pakingduck]
- Large retail programs where every second on the press counts. [theboxzilla]
Rotary tools are typically more expensive up front, so they make sense when your volumes justify the investment. [theboxzilla]
Digital die cutting uses computer‑guided blades or lasers with no physical die, following the vector die line directly. [pakingduck]
Ideal for:
- Short runs, samples and seasonal promotions. [theboxzilla]
- Very intricate shapes or micro‑perforations. [pakingduck]
- Frequent design changes without rebuilding metal tooling. [theboxzilla]
We routinely use digital or laser die cutting for samples, structure testing and small test markets before committing to full steel rule dies for mass production. [gentlever]

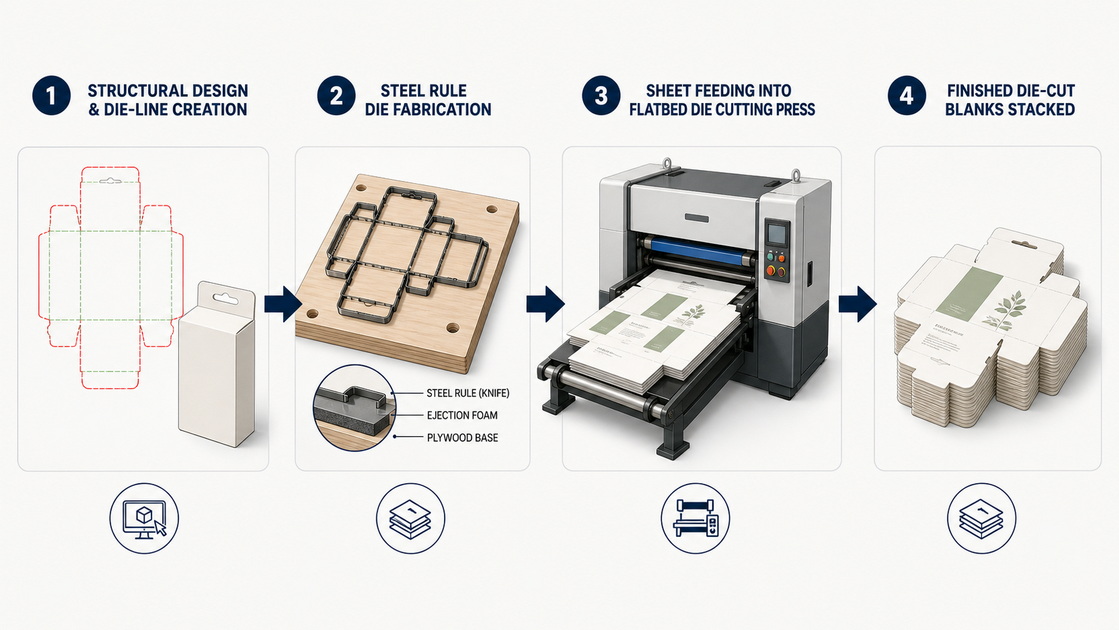

Step By Step: How The Die Cutting Process Works In Packaging
From a brand's perspective, die cutting can feel like a black box. On the factory side, the process is structured and predictable. [corcoranprinting]
- Packaging engineers design the structural layout of the box or display (flat net) based on product size, weight and retail requirements. [corcoranprinting]

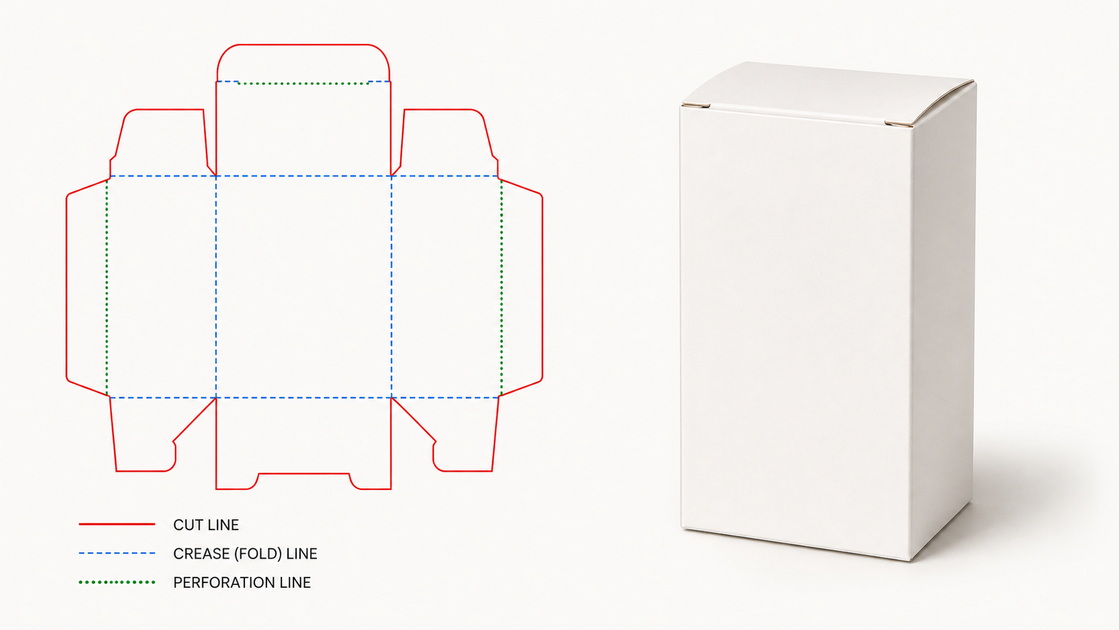

- A die line is prepared with color‑coded lines for cut, crease, score and perforation. [packhelp]
- Designers place artwork on top of this die line, ensuring bleed and registration are correct. [corcoranprinting]
2. Die Manufacturing
- The die maker bends and installs steel rules into a die board following the die line. [michaelpackage]
- Cutting rules, creasing rules and perforating rules are specified based on material thickness. [michaelpackage]
- Foam or rubber is added to help the die release the sheet after cutting. [mitchellincoln]
- The die is mounted on the press (flatbed or rotary). [gentlever]
- Operators run small test sheets, adjusting pressure, registration and waste removal. [corcoranprinting]
- Once approved, the job moves into full production. [gentlever]
- Sheets or rolls are fed through the press and cut into flat blanks. [mitchellincoln]
- Multi‑stage QC checks verify cut cleanliness, crease depth and final dimensions. [gentlever]
- Blanks may then move to folding, gluing, window patching and pre‑packing. [yorkcontainer]
Beyond the basic functions, many packaging projects use additional die cutting operations to achieve more complex structures. [pakfactory]
- Blanking: cutting flat material from the exterior to produce accurate flat blanks, often for automated packing lines. [pakfactory]
- Drawing: pulling material to a predetermined length to create long, lean shapes. [pakfactory]
- Forming: shaping material over curved surfaces for tubes or rounded forms. [pakfactory]
- Coining: using high pressure to create small holes or detailed impressions in specific areas. [theboxzilla]
- Broaching: cutting through very thick or hard materials using rows of cutting teeth. [pakfactory]
In POP displays and specialty gift boxes, we sometimes apply coining and forming to create clean handle holes, cable pass‑throughs or decorative reliefs without adding extra parts. [gentlever]
Your choice of substrate has a direct impact on die design, press settings and achievable detail. [northpennnow]
- Folding carton (SBS, CCNB) allows fine detail, tight creases and small locks. [gentlever]
- Corrugated board (E, B, C flute) requires deeper creases, stronger rules and more generous tolerances. [mitchellincoln]
- Specialty materials (metallic boards, laminated boards, plastics) may need adjusted pressure and specific rule heights. [northpennnow]
When we work with brands, we often adjust structural designs to the dies and board we know will perform well at the chosen volume and retail conditions. [longwindisplay]
From years of producing custom package boxes and POP displays, we see the same issues appear in early design files. [mitchellincoln]
Typical mistakes:
- Tabs and locks that are too small to fold and hold under real handling. [mitchellincoln]
- Creases placed too close to windows, cut‑outs or edges, causing cracking. [mitchellincoln]
- Overly complex shapes that create excessive waste or slow production. [theboxzilla]
- Ignoring grain direction of board, leading to warped or weak panels. [gentlever]
Working with a manufacturer early lets you simplify where needed and invest detail where it really supports branding and function. [longwindisplay]
Understanding the main cost drivers helps brand teams make smarter choices. [lpipossibilities]
Major factors:
- Tooling cost: complex or large dies are more expensive; combining SKUs on one die can optimize cost. [theboxzilla]
- Run length: longer runs spread tooling cost over more units and favor rotary or high‑speed presses. [theboxzilla]
- Material choice: thicker or specialized materials require slower speeds and more robust tooling. [gentlever]
- Design complexity: more cuts, windows and perforations increase make‑ready time and scrap. [theboxzilla]
As a POP and packaging manufacturer, we often propose tiered options: a premium structure, a cost‑optimized version, and a test‑market option using digital die cutting before full rollout. [longwindisplay]
Die cutting principles are the same for boxes and displays, but POP units introduce extra demands. [agilityretail]
POP displays must:
- Support higher load and handling stress than regular boxes. [randwhitney]
- Fold flat for economical shipping, then assemble quickly in store. [bcipkg]
- Integrate pre‑packed boxes or products into structurally sound slots or trays. [yorkcontainer]
This requires careful coordination among:
- Display die lines.
- Product and package box dimensions.
- Pallet and shipping constraints. [randwhitney]

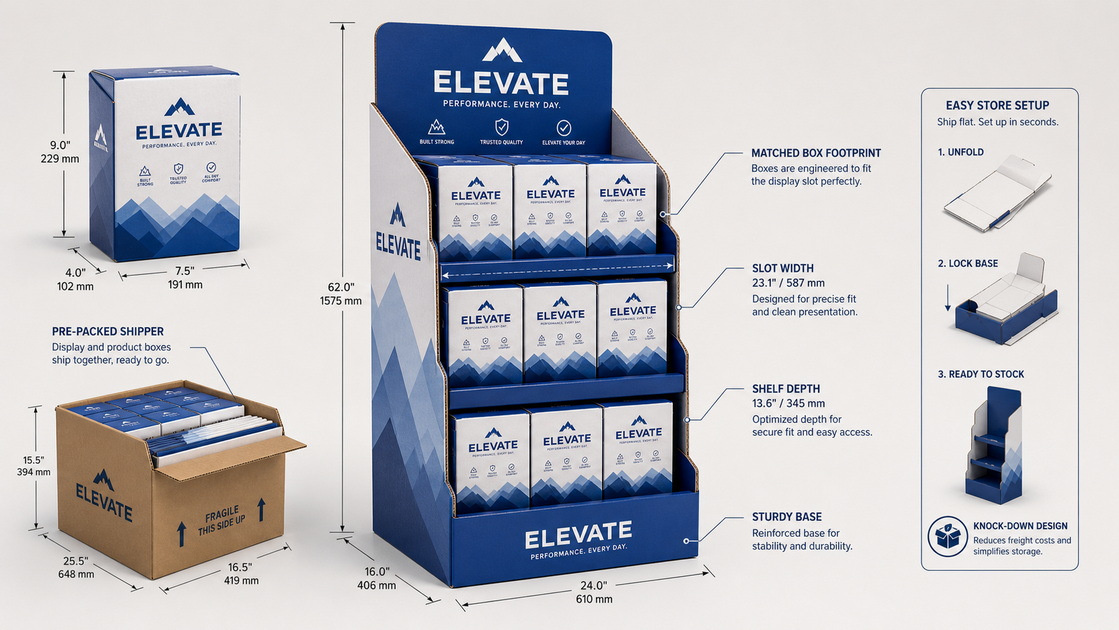

At Long Win Display, we routinely co‑design display die lines and box die lines together so they fit perfectly and can be pre‑packed at our plant. [yorkcontainer]
Use this as a quick review before you send files to your packaging or POP supplier.
| Step | Question For Your Team | Why It Matters |
|---|---|---|
| 1 | Have we defined board type and thickness? (gentlever) | Ensures correct rule height, creasing and press setup. (gentlever) |
| 2 | Is the die line clear with cut, crease and perforation layers? (packhelp) | Avoids production confusion and tooling errors. (packhelp) |
| 3 | Are tabs, locks and slots large enough for real use? (mitchellincoln) | Prevents assembly problems and returns. (mitchellincoln) |
| 4 | Did we consider run length and tooling budget? (gentlever) | Helps choose flatbed, rotary or digital cutting. (pakingduck) |
| 5 | Is the structure compatible with POP displays or pre‑packing? (agilityretail) | Simplifies in‑store setup and logistics. (yorkcontainer) |
As a China‑based POP display and custom package box manufacturer, Long Win Display relies on advanced die cutting capabilities to deliver retail‑ready solutions for global brands. [longwindisplay]
Our role typically includes:
- Co‑engineering die cut structures for corrugated POP displays, countertop units and folding cartons. [randwhitney]
- Providing OEM and ODM services, from structural concept and samples to mass production and pre‑packing. [longwindisplay]
- Optimizing die designs to reduce waste, assembly time and logistics cost while maintaining brand impact. [agilityretail]
Because we manage both display and packaging, we can ensure that die cut components work together smoothly from pallet to retail floor. [yorkcontainer]
If you are planning a new packaging or POP display program, involve your die cutting and display partner as early as possible. Our team at Long Win Display can review your structural ideas, suggest die cutting optimizations, and develop pre‑packed solutions that make your package boxes and POP displays faster to assemble, stronger on shelf and more cost‑effective to produce. [agilityretail]
Share your product dimensions, target materials and retail channels with us, and we will propose tooling options, structural drawings and mock‑ups tailored to your budget and rollout plan. [randwhitney]
1: What is die cutting in packaging?
Die cutting is a process that uses a custom steel rule die to cut, crease, score or perforate packaging materials into precise shapes for boxes, inserts and POP displays. [packhelp]
2: When should I choose flatbed versus rotary die cutting?
Use flatbed die cutting for thicker materials and complex custom shapes in medium runs, and rotary die cutting for high‑volume, simpler packaging where speed is critical. [pakingduck]
3: How does digital die cutting help brand owners?
Digital or laser die cutting removes the need for physical tooling, making it ideal for prototypes, seasonal promotions and short runs where you want flexibility without investing in steel dies. [pakingduck]
4: What information does my supplier need to design a die cut box or display?
You should provide product size and weight, chosen material, estimated run length, printing method, and any retail or logistics constraints such as maximum pallet height or required pre‑packing. [randwhitney]
5: How can die cutting reduce overall packaging and POP costs?
Well‑designed die lines minimize waste, speed up assembly, fit better on pallets and allow for efficient pre‑packing, which reduces labor, freight damage and in‑store setup time. [agilityretail]
