As a packaging engineer who has worked with brands from startup e‑commerce to big‑box retail, I can tell you that choosing the right corrugated box is often the difference between smooth logistics and costly damage claims. Corrugated packaging looks simple, but flute grade, board strength, print options and sustainability decisions all affect your total cost of ownership—not just the price per box. [yorkcontainer]
In this guide, I will walk you through corrugated boxes from the ground up: structure, materials, box styles, testing standards, and the latest 2026 trends in sustainable and retail‑ready packaging. I will also share checklists I actually use when reviewing new suppliers, so you can brief your box manufacturer with confidence. [sustainablepackaging]
At its core, a corrugated box is not just "cardboard." It is a layered structure made of:
- Linerboard: The flat outer sheets
- Medium (fluting): The wavy layer sandwiched in between
These layers are glued together to create a corrugated board with a specific flute profile and strength rating. Unlike simple paperboard, corrugated board is designed to: [pakfactory]
- Protect products during shipping and stacking
- Absorb shocks and vibrations
- Balance strength with material usage to control cost [jamestowncontainer]
Most shipping cartons, subscription mailer boxes and retail‑ready trays you see in warehouses and supermarkets use some form of corrugated board. [pakfactory]
Corrugated packaging remains dominant because it is lightweight, cost‑effective and widely recyclable. Recent reports show corrugated solutions continue to gain share in e‑commerce, food, beverage and consumer electronics: [refinepackaging]
- Brands are shifting from mixed materials to mono‑material corrugated to simplify recycling. [sustainablepackaging]
- Retailers reward "shelf‑ready" corrugated designs that reduce in‑store handling time. [yorkcontainer]
- High‑speed digital printing and die‑cutting make even short‑run custom boxes economically viable. [sunautomation]
For most growing brands, corrugated boxes are the most practical way to protect product, tell your story and stay compliant with retailer and sustainability expectations.
When we specify a box, we rarely start with "I need a brown box." We start with board construction.
The "flute" is the wavy medium glued between liners. Different flute profiles balance cushioning, print quality and stacking strength. [jamestowncontainer]
- A Flute (~5 mm) – Thick, excellent cushioning and stacking for fragile items. [jamestowncontainer]
- B Flute (~3 mm) – Good crush resistance, often used for smaller retail cartons. [jamestowncontainer]
- C Flute (~4 mm) – The most common shipping flute; good all‑round strength and printability. [refinepackaging]
- E and F Flute (1–2 mm) – Thin, ideal for high‑quality printing and retail packaging where graphics matter. [jamestowncontainer]
In practice, many shipping cartons use C flute single‑wall, while premium printed boxes use E or F flute for sharper graphics.
Corrugated can be built in layers:
- Single‑face: One liner + one medium; used as protective wrap. [jamestowncontainer]
- Single‑wall: Two liners + one medium; the most common structure for cartons. [refinepackaging]
- Double‑wall: Three liners + two mediums; used for heavier, high‑stack loads. [jamestowncontainer]
- Triple‑wall: Four liners + three mediums; replaces wooden crates for very heavy items. [jamestowncontainer]
Instead of over‑specifying "the thickest board," good engineers match flute and wall construction to real transport and stacking conditions—often confirmed by simulations and tests. [yorkcontainer]
You do not need to run your own lab, but you should understand the numbers on a Box Manufacturer's Certificate and spec sheets. [pakfactory]
The key metrics are:
- ECT (Edge Crush Test) – Measures stacking strength; common grades like 32 ECT, 44 ECT for shipping cartons. [refinepackaging]
- Burst (Mullen) Test – Measures resistance to puncture/rupture, still used in some industries. [pakfactory]
- Minimum combined weight of facings – Total weight of linerboard before converting, indicating overall robustness. [pakfactory]
Most modern programs use ECT because it correlates better with pallet stacking performance in warehouses and trucks. When you brief a manufacturer, specify: [refinepackaging]
- Box dimensions and orientation on pallet
- Max weight per box
- Pallet stacking height and storage time
This allows the supplier to engineer an efficient, not just "strongest," board spec. [yorkcontainer]

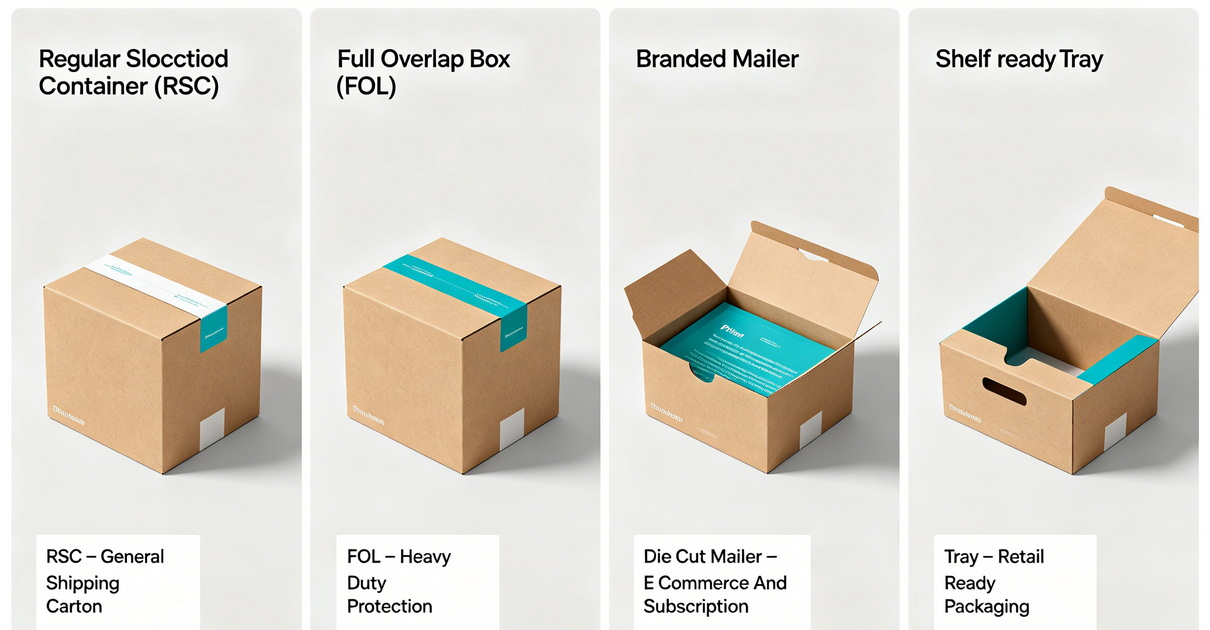

The original article outlines common box styles; from an engineer's perspective, here is how I actually choose them. [pakfactory]
- All flaps are the same depth; flaps meet in the middle.
- Best for: General shipping, e‑commerce cartons, master cases. [pakfactory]
- Advantages: Simple, cost‑effective, easy to automate.
- Outer flaps fully overlap; double thickness on top and bottom. [pakfactory]
- Best for: Heavy products or shipments with high drop risk.
- Advantages: Stronger top/bottom, good for long/heavy items.
- Custom shapes, often with hinged lids, dust flaps, and locking tabs. [refinepackaging]
- Best for: D2C and subscription brands that care about unboxing experience.
- Advantages: Great for branding; can use E/F flute for high‑quality graphics.
- Open‑top trays or tear‑away fronts, designed to go directly on shelf. [yorkcontainer]
- Best for: Retail programs where staff should not hand‑stack individual units.
- Advantages: Save labor in store; align perfectly with POP displays like those Long Win Display designs.
The key is to design for your entire supply chain: how the box is packed, palletized, shipped, stored, opened and merchandised.
From a brand perspective, corrugated packaging is a touchpoint, not just a cost center. Current packaging design guides emphasize: [carepac]
- Clarity: Product name, size, key claims and regulatory info must be instantly readable.
- Brand consistency: Colors, logo spacing and typography aligned with your digital and in‑store presence.
- Production reality: Artwork must respect print tolerances, flute direction and folding lines.
Modern digital and flexo printing allow you to choose between:
- Low‑ink, minimalist designs to signal sustainability and control cost. [shopify]
- Full‑bleed, high‑impact graphics for retail displays and unboxing moments. [meyers]
For brands using both corrugated boxes and POP displays, aligning artwork across outer shipping cartons, shelf‑ready trays and in‑store displays creates a seamless brand experience.

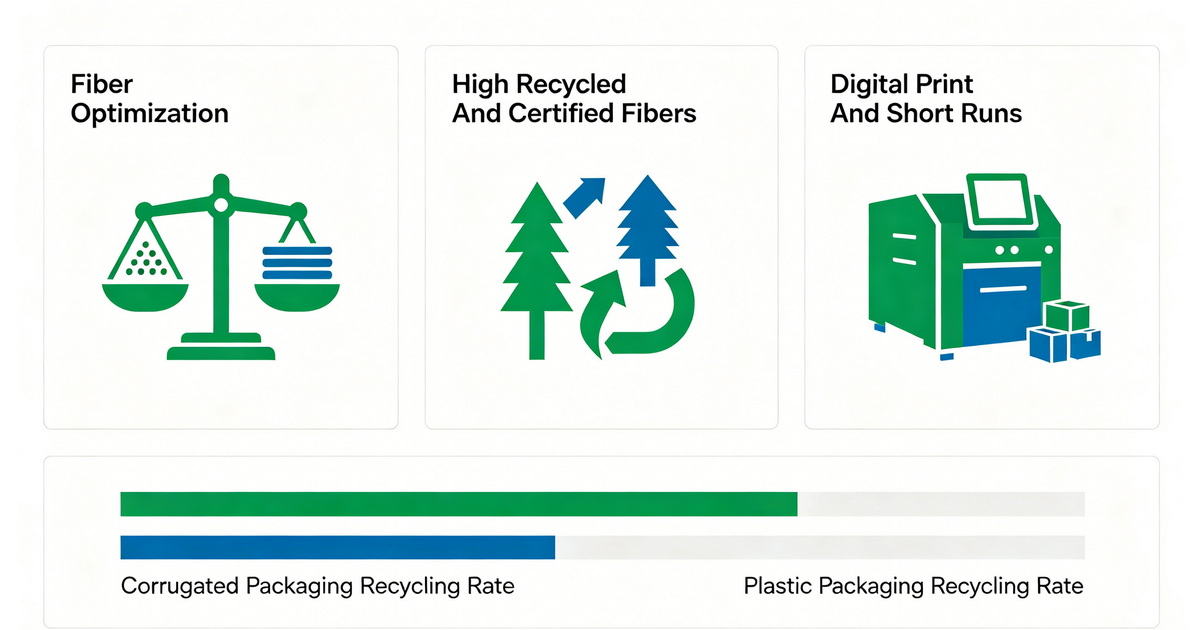

Recent sustainability reports highlight four major trends shaping corrugated packaging in 2026: [sunautomation]
1. Fiber reduction with performance kept constant
- Using simulations and lab tests, converters optimize flute and liner combinations to maintain stacking strength while using less fiber. [sunautomation]
2. Higher recycled content and certified virgin fibers
- More brands demand boxes with verified recycled content and certifications such as FSC or PEFC for virgin fibers, driven by retailer scorecards and ESG reporting. [sustainablepackaging]
3. Retail‑ready and e‑commerce‑ready design
- Boxes that can convert from transport packaging to shelf or online unboxing with minimal extra materials are favored. [shopify]
4. Digital print and shorter runs
- High‑speed digital printing lets brands run frequent design refreshes and localized campaigns without large inventory risk. [sunautomation]
For buyers, this means you should be asking not only "How strong is this box?" but also "How sustainable and future‑proof is this spec?"
From a procurement and engineering standpoint, I typically evaluate a corrugated partner on three levels: capability, consistency, collaboration.
- In‑house design and structural engineering team
- Range of flute grades, board combinations and printing options
- Access to testing (ECT, compression, drop, vibration, humidity) [sunautomation]
- Documented quality systems (often ISO 9001 or equivalent)
- Clear specifications and version control for each box design
- Traceability from finished boxes back to paper rolls and shifts [sunautomation]
- Speed and quality of design proposals and samples
- Willingness to optimize spec (not just upsell thicker board)
- Experience coordinating with POP display producers for unified campaigns
Manufacturers like Long Win Display can sit at the intersection of corrugated packaging and POP displays, which simplifies artwork management and pre‑packing for retail programs.
There are a few issues that experienced buyers quietly check which you rarely see in marketing content:
1. Spec drift over time
- A box may pass initial tests, but over multiple reorders the actual board combination quietly changes to save cost.
- Insider tactic: keep a "golden sample" and periodically send current production to an independent lab for ECT and board analysis.
2. Over‑engineered boxes that hide inefficiency
- Some converters propose heavier board than needed; this looks "safer" but inflates material cost and freight. [yorkcontainer]
- Insider tactic: request a cost‑optimized alternative spec with test results and compare total cost, not just fiber weight.
3. Ignoring retailer and courier limits
- Boxes that technically survive tests but exceed courier size thresholds or retailer weight guidelines can create downstream cost and compliance issues. [shopify]
- Insider tactic: align dimensions and weight with specific retailer or carrier standards early in the design stage.
By deliberately asking about these points, you signal that your team is experienced—which usually improves the quality of proposals you receive.

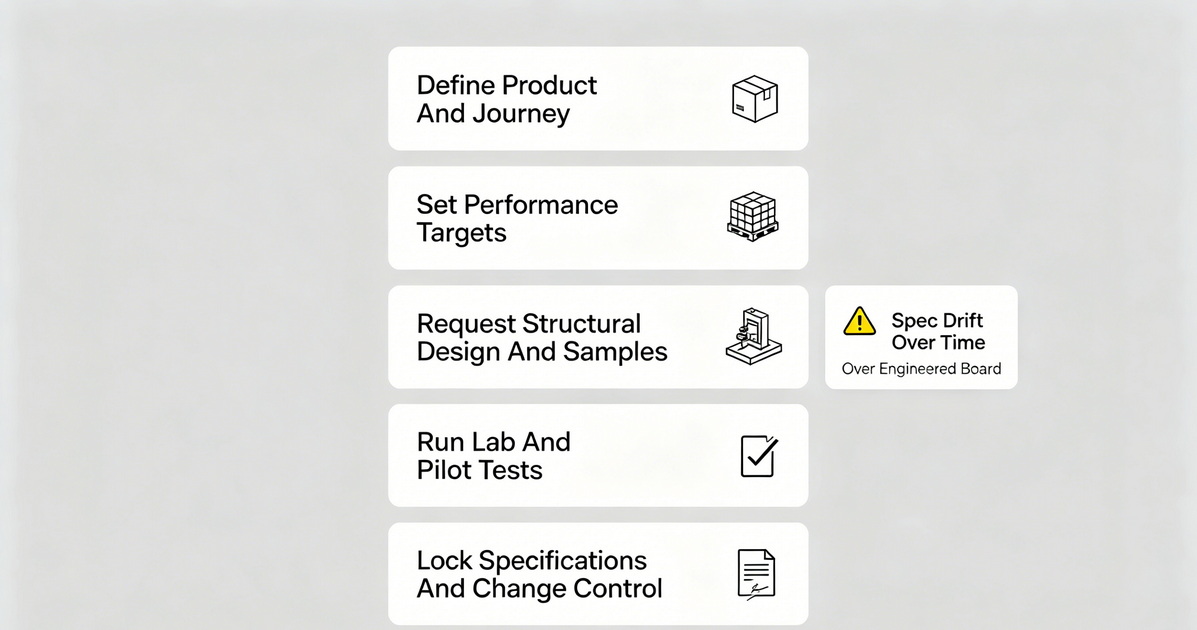

When working with a packaging partner, I recommend using a structured brief:
1. Define the product and journey
- Weight, fragility, moisture sensitivity
- Route (fulfillment center, air/sea, courier, retail shelf) [shopify]
2. Set performance targets
- Required stacking height and duration
- Acceptable damage rate (e.g. <1% per thousand shipments) [yorkcontainer]
3. Clarify branding and sustainability goals
- Print coverage, color expectations and finishing
- Recycled content targets, certifications, plastic usage limits [sustainablepackaging]
4. Agree on tests and validation
- Which tests will be run, by whom, and what constitutes "pass"
- Number of pilot runs before full‑scale rollout [sunautomation]
5. Lock specifications and change control
- Final drawings, board codes, print specs and tolerances
- Process for approving any future changes
This process keeps engineering, marketing, procurement and your packaging supplier aligned.
Corrugated boxes are no longer just "brown shipping containers." They are structural, branding and sustainability tools that can reduce damage, simplify logistics and enhance customer experience at the same time. [sustainablepackaging]
If your current packaging feels over‑engineered, under‑performing or visually inconsistent with your POP displays, it may be time to run a structured review. Partnering with a design‑driven corrugated and POP specialist can help you re‑engineer your boxes from the flute up, improve shelf impact and lower total cost.
1. Is corrugated the same as cardboard?
No. "Cardboard" is a generic term. Corrugated board is a specific structure made of linerboard and fluted medium, engineered for strength and protection. [refinepackaging]
2. How do I choose the right flute type for my product?
Match flute to your priorities: A and C flute for cushioning and stacking, B flute for better crush resistance in smaller boxes, and E or F flute when high‑quality printing and compact thickness matter most. [jamestowncontainer]
3. What is the difference between ECT and burst test ratings?
ECT measures stacking strength and is widely used for palletized shipping, while burst (Mullen) measures resistance to puncture or rupture. Many modern programs rely primarily on ECT for transport performance. [refinepackaging]
4. How can I make my corrugated boxes more sustainable without compromising protection?
Work with your converter to optimize flute and liner combinations using simulations and tests, increase recycled content where feasible, and remove unnecessary coatings or plastic components. [sustainablepackaging]
5. When should I use double or triple wall corrugated?
Use double wall for heavy, high‑value products or tall pallet stacks, and triple wall when corrugated is replacing wooden crates for very heavy or sensitive equipment; single wall is sufficient for most e‑commerce and retail applications. [refinepackaging]
