After more than a decade helping global brands design and produce custom package boxes and POP displays in our Long Win Display factories, I've seen one simple mistake cost companies thousands of dollars: measuring a box the wrong way. Whether you are ordering retail packaging, shipping cartons, or pre‑assembled display packs, accurate box dimensions are the foundation for product safety, cost control, and reliable logistics. In this guide, I'll walk you through how to correctly measure a box dimension step by step, share practical examples from real projects, and show you how a packaging manufacturer actually uses those numbers in production. [epackprinting]
In B2B projects, box measurement is not just a technical detail; it directly affects your budget, timelines, and customer satisfaction. [imperialdade]
When you measure correctly:
- Material usage is optimized, reducing waste and cost
- Products fit snugly, with minimal movement and lower damage rates
- Shipping, warehousing, and palletizing are more predictable
- Your packaging drawings and 3D samples match what arrives in your warehouse
When you measure incorrectly:
- Products don't fit, causing reprints, retooling, or complete reorders
- Corrugated thickness is ignored, so inside space is too tight
- Shipping costs spike due to oversized or inefficient cartons
- Retailers struggle with shelf fit and planograms
As a Chinese POP display and custom box manufacturer, we insist on accurate internal dimensions before we design any dieline or confirm any quotation, because that is the only way to guarantee that the final packaging works in real life. [pax]

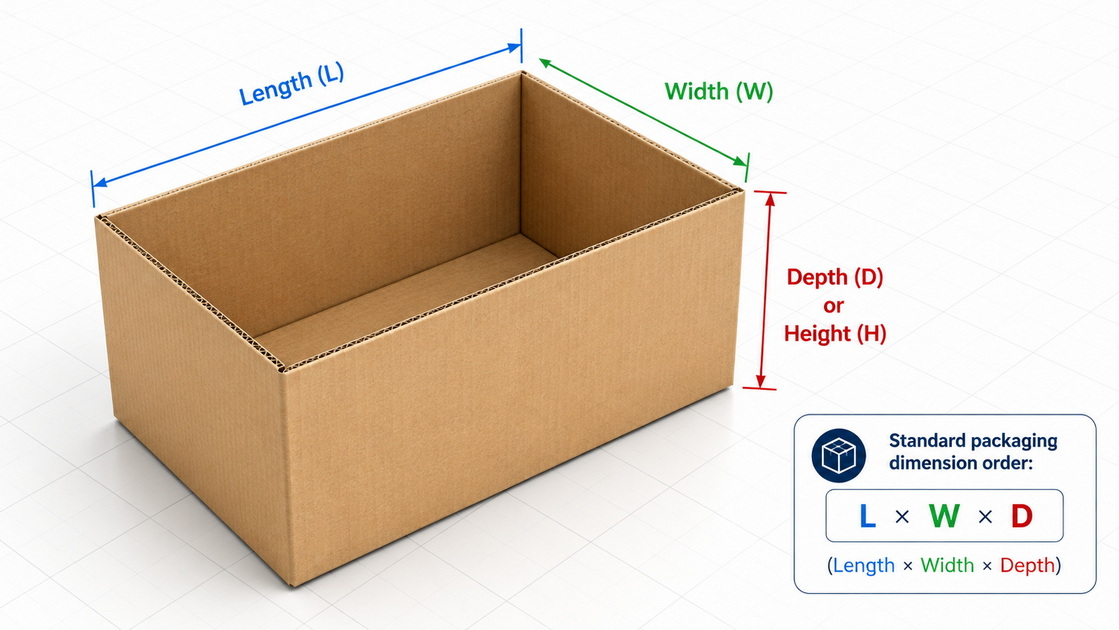

Every rectangular box is defined by three key dimensions: length, width, and depth (or height). The standard way to record them in packaging is: [pakfactory]
Length × Width × Depth (L × W × D)
(You may also see Length × Width × Height, which is equivalent.) [customboxeslane]
- Length: The longest side when you look at the top opening of the box
- Width: The shorter side along the same top opening
- Depth (Height): The side perpendicular to length and width, measured from the base to the top
For tall "upward‑facing" boxes, depth becomes the most prominent dimension, while length and width are smaller; for long boxes, the length dominates and depth is much shorter. [pax]
From a manufacturing perspective, the only reliable method is to measure inside dimensions, not outside. Here is the process we recommend to every B2B customer. [diypack]
- Fully assemble and square the box so all corners sit at 90 degrees
- Close flaps or lids if you want to measure usable internal depth with closure considered
- Use a steel ruler or measuring tape and round up to the nearest millimeter or 1/16 inch [companybox]

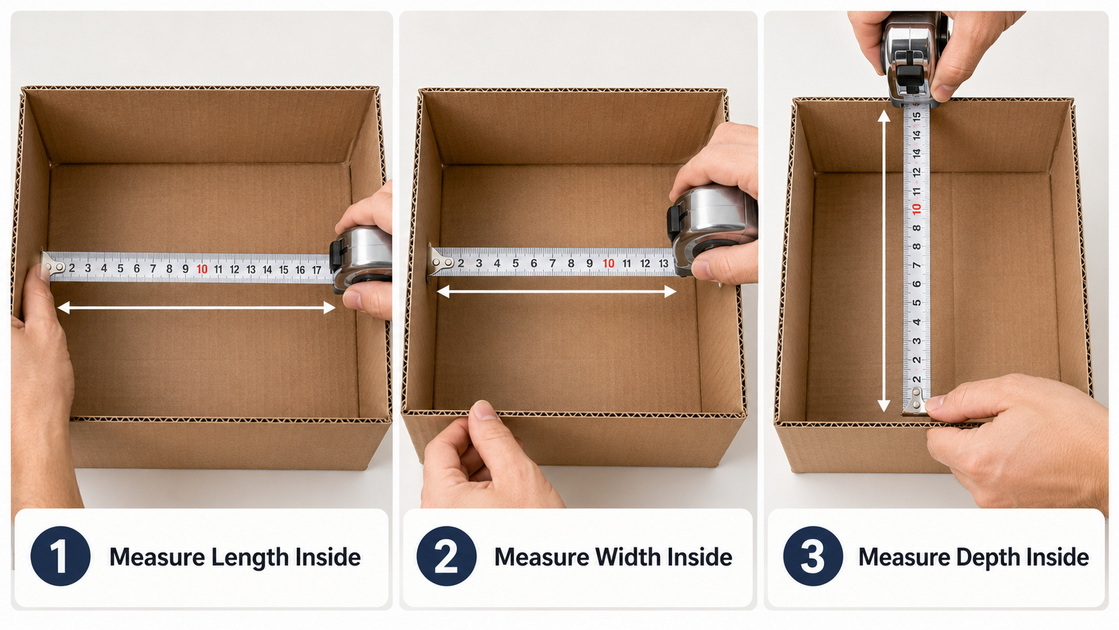

- Place the box so the opening faces upward
- Identify the longest side at the opening (often the side with the longer flap)
- Measure the internal distance from one inside edge to the opposite inside edge
- Record this as Length (L)
- Rotate the box 90 degrees
- Measure the shorter side at the opening, again from inside edge to inside edge
- Record this as Width (W)
- Measure from the inside bottom panel straight up to the inside top edge when the box is fully open or closed, depending on your use case
- This value becomes Depth (D) or Height (H)
By using internal measurements, you automatically account for corrugated flutes, paperboard thickness, and any laminations that reduce usable space. [diypack]

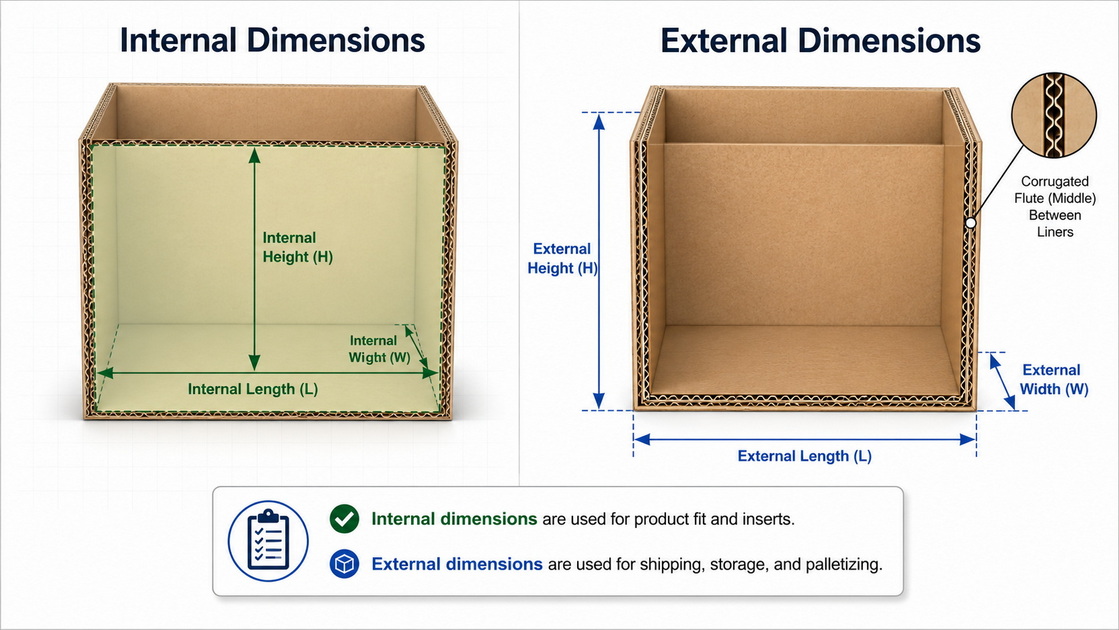

The original PakFactory guide highlights a crucial point: the industry standard for box dimensions is internal, not external. This distinction is especially important for corrugated boxes, where fluting adds several millimeters to each side and can significantly reduce internal space. [pax]
- Internal dimensions tell you how much space your product and inserts actually have
- External dimensions describe how the box behaves in shipping, stacking, and palletizing
If you measure only the outside and ignore board thickness:
- Products may not fit or may deform the panels
- Inserts won't sit flush, causing assembly and QC issues
- You may need to remake tooling or re‑order a full batch
At Long Win Display, we always ask clients to confirm whether their dimensions are internal or external before we finalize any structural drawings or production files, to avoid this expensive misalignment. [customboxeslane]

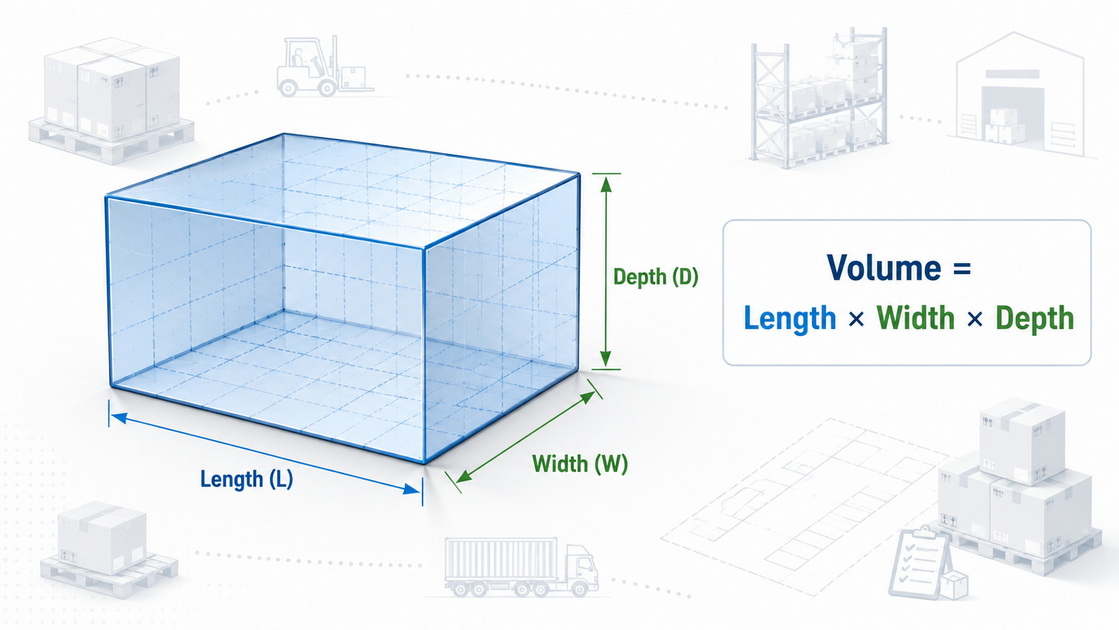

Once you have Length, Width, and Depth, you can calculate volume using a simple formula: [customboxesnow]
Volume=Length×Width×Depth
Volume helps you:
- Compare how tightly different packaging concepts use internal space
- Estimate how many units fit in a shipper, on a pallet, or in a container
- Understand how much void fill or cushioning is required
For shipping and carrier pricing, you also need dimensional weight (DIM weight), which most carriers compute by dividing the box's external cubic size by a standard divisor. Even if your logistics partner handles the final calculation, supplying accurate dimensions will reduce unexpected freight costs. [wcpsolutions]
To make measurement clearer, we often group client projects into a few common box types. Each type emphasizes different dimensions.
Think of a vertical cosmetic set or a tall game box standing on a shelf. Here:
- Depth (height) is visually dominant
- Length and width are smaller and form the base footprint
- Stability depends heavily on depth‑to‑base ratio
Correct internal depth helps avoid situations where a product almost reaches the top panel and causes bulging, or where too much headspace requires unnecessary filler. [epackprinting]
Long toolkits, keyboard boxes, or certain board game boxes fall into this group. In these cases:
- Length is the largest dimension
- Depth and width are smaller, often similar
- Stackability and bending resistance along the long side become critical
We often reinforce long boxes with internal partitions or thicker boards to prevent bending during transit.
For POP display kits, boxes must work both as protective packaging and as a modular unit that fits into floor or counter displays. In these projects we:
- Match product box dimensions to the display cells from the beginning
- Use standardized L × W for consistent facings, adjusting depth to product needs
- Consider how boxes interlock or align visually in multi‑SKU displays [packagingtechtoday]
This is where the combination of accurate dimensions and display design makes a measurable difference at retail.
Correct dimensions are the starting point for engineering and costing. [epackprinting]
- Material selection: Board thickness, flute type, and coatings must match span and load
- Sheet optimization: Dielines are nested on print sheets or corrugated blanks based on size
- Tooling and printing: Larger dimensions can require bigger machines or special handling
For example, a box that is just a few millimeters too large might:
- Waste extra board per unit
- Reduce how many blanks fit per sheet
- Increase the number of pallets required for the same order quantity
By validating dimensions early, we can suggest adjustments that save material without compromising protection, often translating into noticeable B2B cost savings over large runs. [imperialdade]
From a production standpoint, the safest workflow is to measure the product and inner configuration first, then design the box around it. [packagingtechtoday]

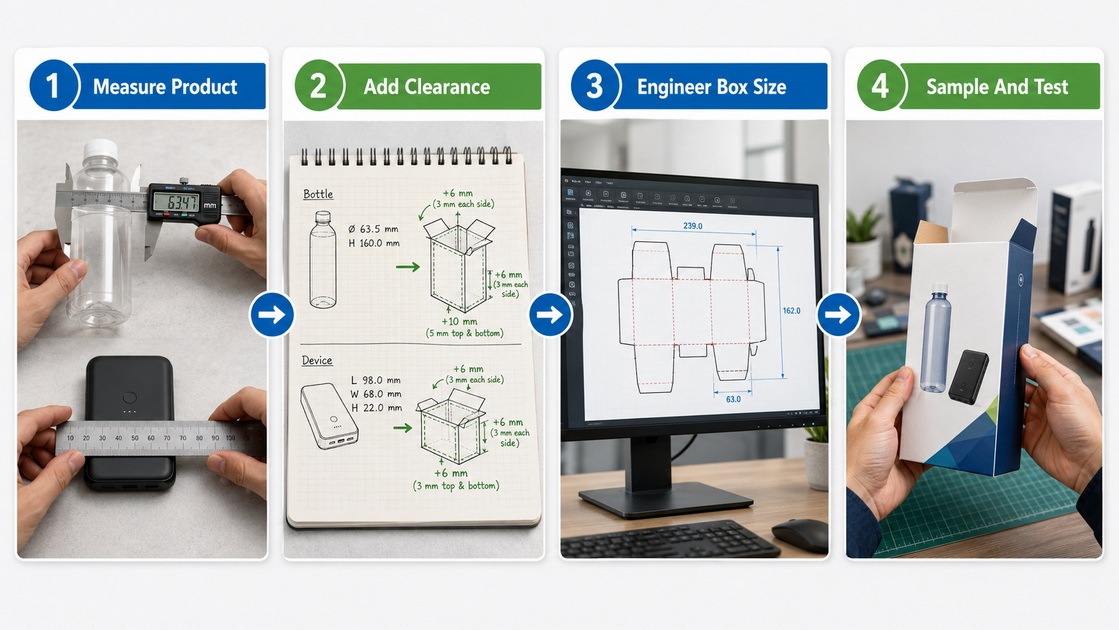

A practical checklist we use with clients:
1. Measure the product's L × W × H
Include protruding parts, handles, or accessories.
2. Add clearance for inserts and padding
Typically 3–10 mm per side or 0.25–0.5 inches, depending on fragility and materials. [imperialdade]
3. Consider stacking or sets
Multiple items in one box, nested sets, or bundles will often change the needed depth.
4. Account for board thickness
Adjust internal dimensions based on paperboard or corrugated thickness to keep external size within shipping or retail limits. [pax]
5. Validate with a white sample
Before full production, create a blank (unprinted) prototype to physically test fit and handling.
This workflow greatly reduces rework and is standard practice for our Long Win Display engineering team on custom POP and packaging projects.
Not all packaging is a simple rectangle. Some common special cases require extra care.
For tubes or round boxes:
- Measure diameter across the widest part of the cylinder for length and width
- Measure height from base to top edge
- Consider how end caps or lids reduce usable internal height [epackprinting]
For shaped boxes, window boxes, and complex display boxes:
- Identify maximum length, width, and height points
- Use flexible measuring tools for curves
- Add extra tolerance where inserts or folded elements may occupy space [elixirpackaging]
In these projects, we often rely on 3D CAD and prototype iterations to confirm critical dimensions before committing to tooling.
Over the years, we've seen many clients come to us after bad experiences with previous packaging runs. When we review their feedback, customer complaints often look like this:
"The boxes looked fine in photos, but when we tried to pack our products, we realized the inside depth was 3 mm too short. We ended up trimming inserts by hand for an entire batch."
"Our original vendor measured external dimensions only, so once the corrugated board and lamination were added, the space was too tight. We had to reorder all the outer cartons before a big launch."
"Retailers told us our cartons didn't match the shelf plans they had prepared, which forced them to place us on a bottom shelf. We didn't realize how strictly they follow standard box sizes."
These "user reviews" are exactly why we place so much emphasis on dimension clarity, internal measurement, and physical sampling during project kick‑off at Long Win Display. [pax]
| Step | What To Measure | How To Measure (Inside) | Why It Matters |
|---|---|---|---|
| 1 | Box setup | Square the box, open or close as needed | Ensures accurate, repeatable measurements |
| 2 | Length (L) | Longest side at the opening, inside edge to inside edge | Forms the main orientation and layout base |
| 3 | Width (W) | Shorter side at the opening, inside edge to inside edge | Completes the internal footprint |
| 4 | Depth / Height (D/H) | Inside bottom to inside top edge | Defines product stack height and internal volume |
| 5 | Volume | Multiply L × W × D | Helps optimize packing, shipping, and warehousing |
| 6 | External dimensions (for shipping) | Measure outside L × W × H | Used for palletizing and dimensional weight calculations |
The best time to talk to your packaging manufacturer about box dimensions is before you finalize your product configuration or commit to a previous design. [packagingtechtoday]
When clients involve Long Win Display early, we can:
- Review product measurements and recommend ideal L × W × D ranges
- Align product boxes with POP display cells so they work together as a system
- Suggest adjustments that save material or reduce shipping costs
- Produce white samples and structural drawings for internal approval
Because we design, customize, produce, and pre‑assemble package boxes and POP displays in‑house, we see the entire chain—from CAD drawings to retail execution—and can spot dimension risks before they become costly problems.
1. What is the correct order of box dimensions in packaging?
The standard order in the packaging industry is Length × Width × Depth (L × W × D), where length is the longest side at the opening, width is the shorter side, and depth is the vertical measurement from base to top. [pakfactory]
2. Should I measure a box from the inside or outside?
For custom packaging and product fit, you should always measure internal dimensions, because board thickness, fluting, and coatings reduce usable internal space. External dimensions are mainly used for shipping and palletizing. [diypack]
3. How accurate do my measurements need to be?
For most B2B packaging projects, measure to at least 1–2 mm or 1/16 inch accuracy and round up to avoid a too‑tight fit. High‑precision products or complex inserts may require even tighter tolerances. [companybox]
4. How do box dimensions affect shipping costs?
Carriers often use dimensional weight, which is calculated by multiplying external length × width × height and dividing by a standard factor. Larger dimensions, even with light products, can push you into higher freight brackets. [wcpsolutions]
5. Can Long Win Display help if I only know my product size?
Yes. If you provide accurate product measurements, photos, and usage details, our engineering team can design suitable box dimensions and POP display solutions, including inserts and protective packaging tailored to your distribution channels.
